ZCJ-DS

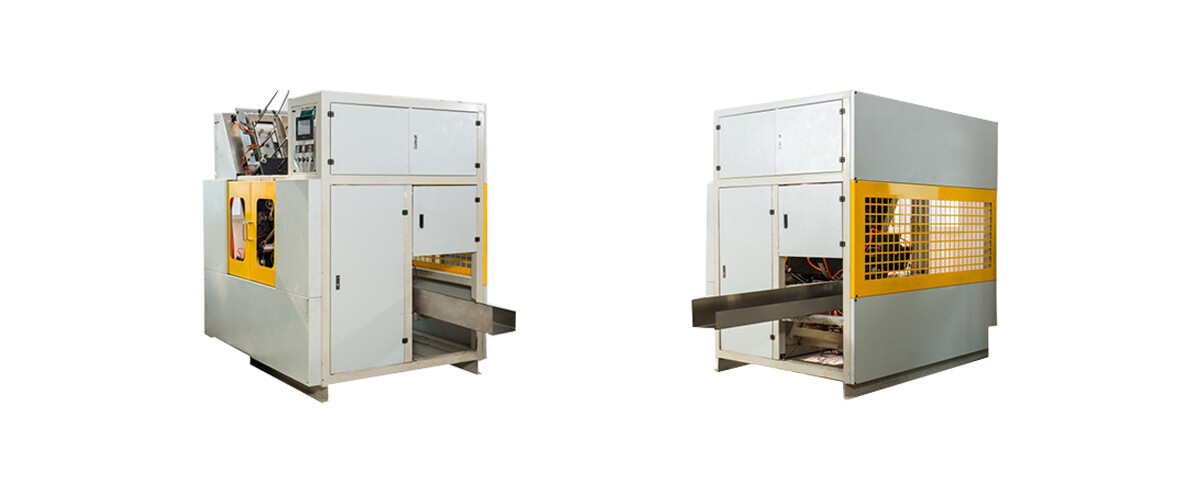

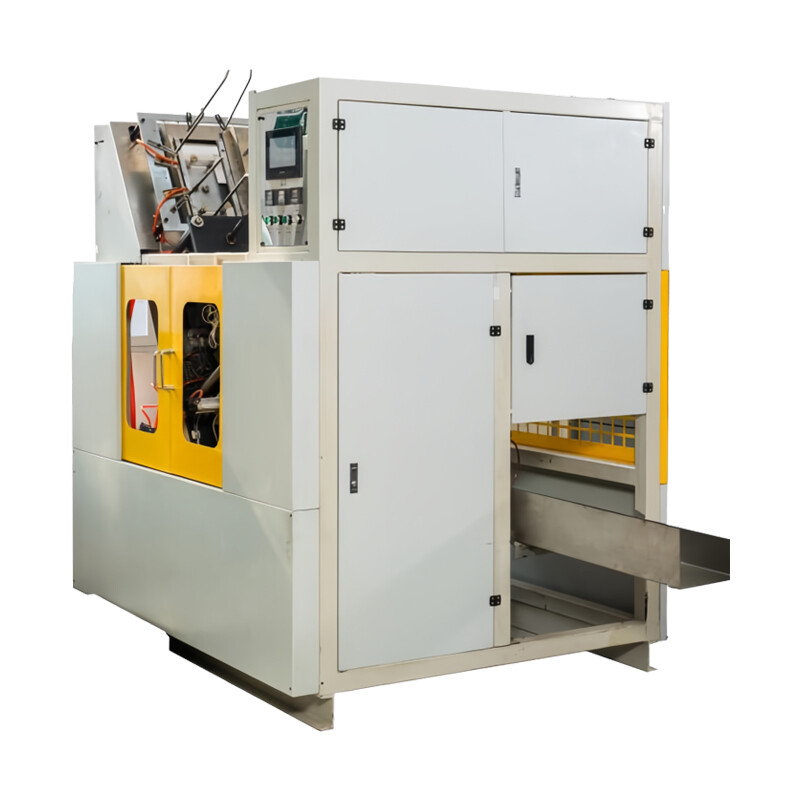

ZCJ-D-S fully automatic paper lunch box making machine
| Basic Products | Paper mold included | Features | Pneumatic transmission, automatic production | |
| Put paper | Manual | Single product, dedicated equipment | ||
| Out of the box | Slide | Fixed products, mass production | ||
| Performance extension products | Replace the mold | Can't | Applicable | Long-term stable products |
| Add mold | Fixed specifications | |||
| Automatic stacking box | Special products | |||
| Intelligent detection | ||||
| Smart packaging | ||||
| Die cutting size range | Width no greater than 320 | |||
| Product size range | The box height is not more than 50, and the cover height is not more than 30 |
Equipment Features
| Project | Parameter |
| Maximum paper size | |
| Paper thickness applicable range | 260g---350g PE coated paper |
| Production speed | 15-20/min |
| Power supply | 220V 50HZ |
| Power | 3.5KW |
| Air pressure | 0.7--0.9Mpa |
| Heating method | Heating tube |
| Overall weight | 2000kg |
| Device size | 1800×1800×1900（mm） |
| Equipment features: ZCJ-DS is the latest self-locking box cover and box cover integrated paper lunch box forming equipment. The folding structure design is adopted to cleverly utilize the high space folding process of the entire product to reduce the space of the equipment. The safety of the equipment has passed the CE certification. If there is a fault, the equipment will automatically shut down and cannot be started. After the fault is eliminated, close the observation window and the equipment will return to normal. After the box is formed, the robotic arm will automatically collect the box, stack the boxes and count them. | |

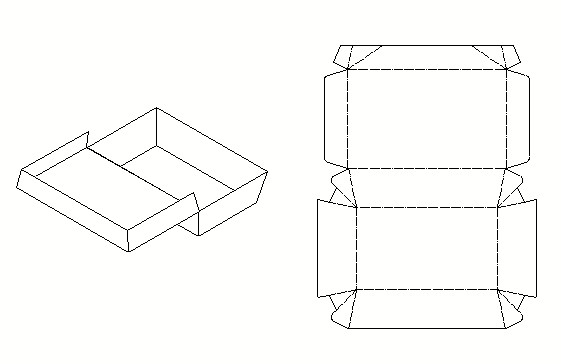

Producible box type
