ZCJ-XS

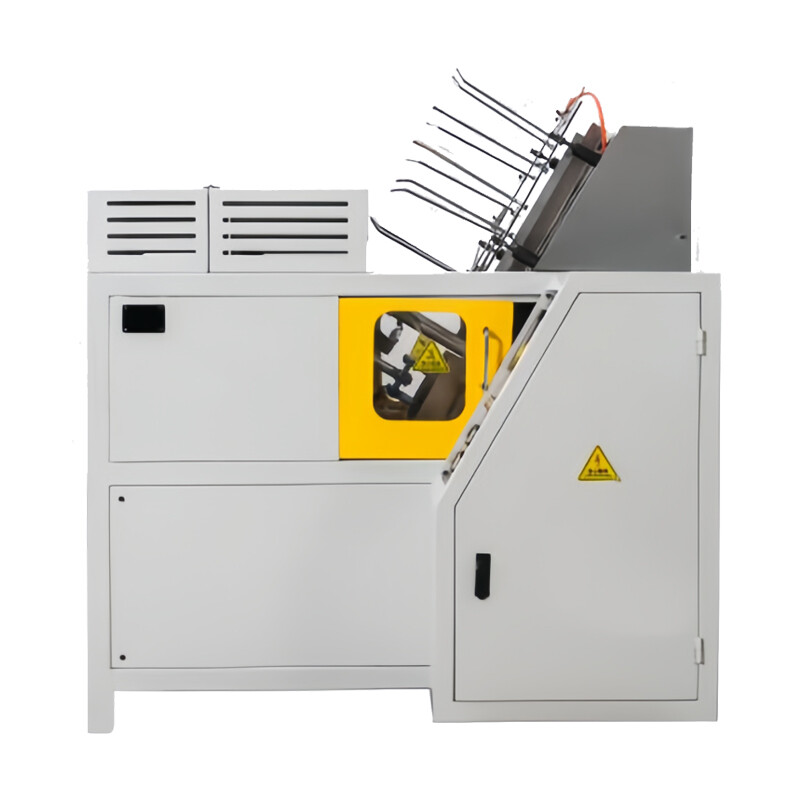

ZCJ-X-S fully automatic paper food box making machine
| Basic Products | Paper mold included | Features | Pneumatic transmission, automatic production | |
| Put paper | Manual | Simple operation, single variety | ||
| Out of the box | Slide | Fixed products, mass production | ||
| Performance extension products | Replace the mold | Not recommended | Applicable | Long-term high-volume products |
| Add mold | Fixed specifications | |||
| Automatic stacking box | With slide | |||
| Intelligent detection | ||||
| Smart packaging | ||||
| Die cutting size range | Width no greater than 320 | |||
| Product size range | The box height is not more than 50, and the cover height is not more than 30 |
Equipment Features
| Project | Parameter |
| Maximum paper size | |
| Paper thickness applicable range | 170g---360gPE/PLA |
| Production speed | 23-25/min |
| Power supply | 220V50HZ |
| Power | 3.3KW |
| Air pressure | 0.7--0.9Mpa |
| Gas source treatment method | Pressure reducing valve control, oil lubrication |
| Heating method | Heating tube |
| Overall weight | 350kg |
| Device size | 1300×880×1300（mm） |
| Equipment features: ZCJ-XS is easy and safe to operate. It can be turned on with one button. The operation interface is displayed in multiple languages, which is convenient for operators to use. The production process is controlled by microcomputers, with a high degree of automation. One person can operate multiple devices and set up production lines of different scales online, which is more efficient. The equipment has passed CE certification. The safety window is eye-catching. If there is a fault, the equipment will automatically shut down and cannot be started. After the fault is eliminated, close the observation window and the equipment will resume normal operation. | |

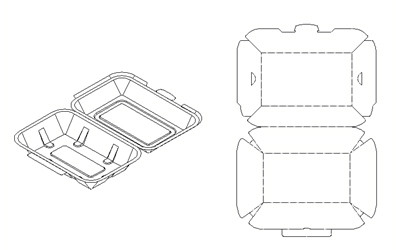

Producible box type
