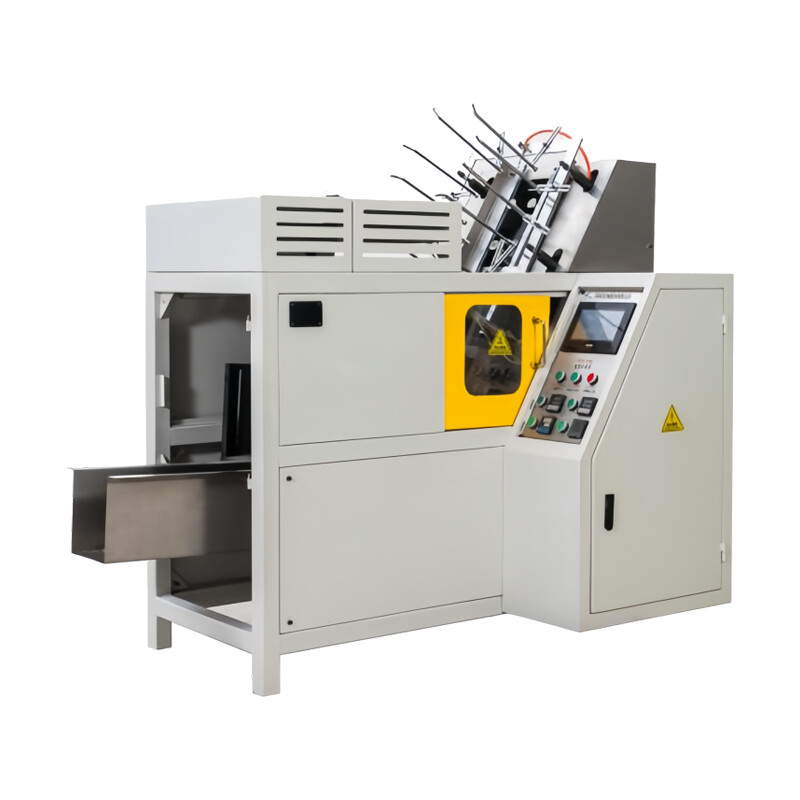

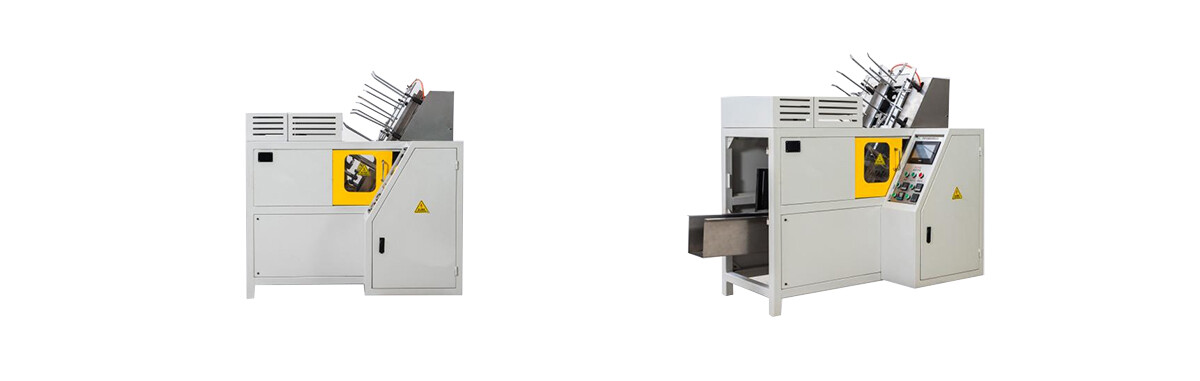

ZCJ-X-D fully automatic paper food box making machine
ZCJ-XD

ZCJ-X-D fully automatic paper food box making machine

Basic ProductsPaper mold included
FeaturesPneumatic transmission, automatic production
Put paperManualSimple operation, single variety
Out of the boxSliding shovel (square box into heat)Fixed products, mass production


Automatic box stacking
Performance extension productsReplace the moldNot recommendedApplicableLong-term high-volume products
Add mold
Fixed specifications
Automatic stacking box

Intelligent detection
Smart packaging
Die cutting size rangeWidth no greater than 320
Product size rangeHeight not more than 50

Equipment Features


ProjectParameter
Maximum paper size
Paper thickness applicable range176g---360g PE coated paper
Production speed23-25 pieces/min
Power supply220V50HZ
Power3.3KW
Air pressure0.7--0.9Mpa
Gas source treatment methodPressure reducing valve control, oil lubrication
Heating methodHeating tube
Overall weight350kg
Device size1500×880×1300（mm）
Equipment features: ZCJ-XD is easy and safe to operate. It can be turned on with one button. The operation interface is displayed in multiple languages, which is convenient for operators to use. The production process is controlled by a microcomputer, with a high degree of automation. One person can operate multiple devices and set up production lines of different scales online, which is more efficient. The equipment has passed CE certification. The safety window is eye-catching. If there is a fault, the equipment will automatically shut down and cannot be started. After the fault is eliminated, close the observation window and the equipment will resume normal operation.



Producible box type




Shallow trayBoat-shaped plateSingle cavity right angle lunch box




Single cavity rounded corner lunch box
