ZCJ-XZ

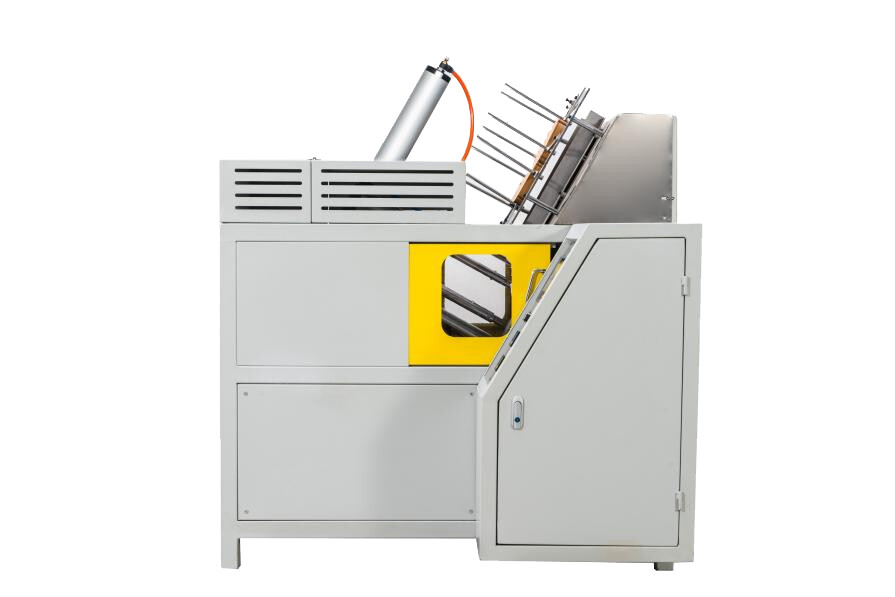

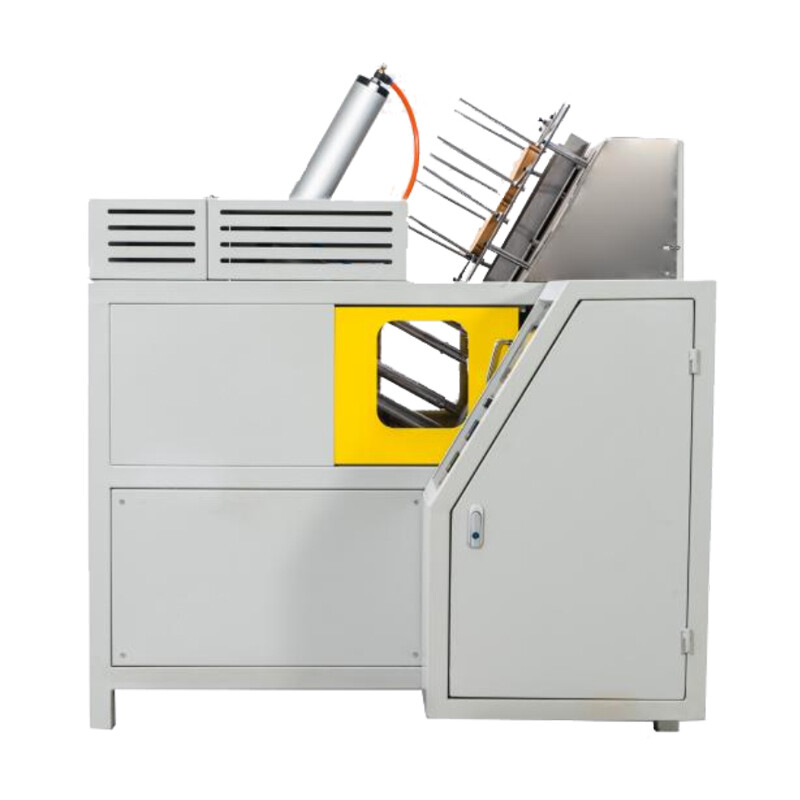

ZCJ-X-Z Pressurized cylinder paper food tray/plate making machine
| Basic Products | Paper mold included | Features | Pneumatic transmission, automatic production | |
| Put paper | Manual | Simple operation, single variety | ||
| Out of the box | Slide | Fixed products, mass production | ||
| Performance extension products | Replace the mold | Not recommended | Applicable | Long-term high-volume products |
| Add mold | Fixed specifications | |||
| Automatic stacking box | Retrofit | Flanging, reinforcing ribs, and smoothing products | ||
| Intelligent detection | ||||
| Smart packaging | ||||
| Die cutting size range | Width no greater than 320 | |||
| Product size range | Height no more than 45, width no more than 300 |
Equipment Features
| Project | Parameter |
| Maximum paper size | |
| Paper thickness applicable range | 170g---360gPE coated paper |
| Production speed | 15-20/min |
| Power supply | 220V50HZ |
| Power | 3.3KW |
| Air pressure | 0.7--0.9Mpa |
| Gas source treatment method | Pressure reducing valve control, oil lubrication |
| Heating method | Heating tube |
| Overall weight | 380kg |
| Device size | 1300×880×1300（mm） |
| Equipment features: ZCJ-XZ is easy and safe to operate. It can be turned on with one button. The operation interface is displayed in multiple languages, which is convenient for operators. The molding pressure is provided by the hydraulic booster cylinder. The molded products can be designed in various ways to improve the product strength. The equipment has a high degree of automation. One person can operate multiple devices and set up production lines of different scales online, which is more efficient. The equipment has passed CE certification. The safety window is eye-catching. If there is a fault, the equipment will automatically shut down and cannot be started. After the fault is eliminated, close the observation window and the equipment will resume normal operation. | |
Producible box type
|
|
|

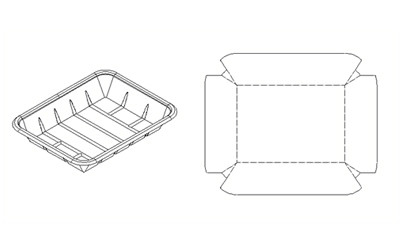

| Reinforced pallet | Shallow tray | Deep tray |
|
|
|

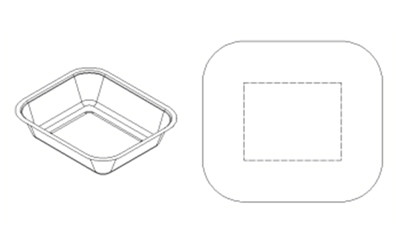

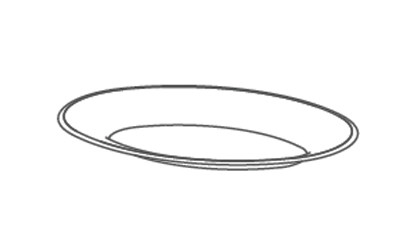

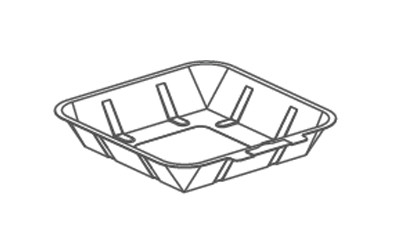

| Smoothed paper plate | Square plate | disc |
